Driving Pin NK Concrete Driving Nails Drive Screw Nails into Concrete Steel

Description:

NK drive nails are widely used in industries such as construction, woodworking and home improvement. Their main function is to speed up and accurately set nails to the surface of the material, thereby facilitating construction and fixing tasks. Driving pins are able to quickly complete jobs with large numbers of nails, increasing productivity while reducing physical strain on workers. Best of all, the nail gun’s engineered construction guarantees precise nail placement on the target material, reducing the risk of misalignment, loosening or damage. This not only ensures the durability of the fixing, but also reduces maintenance and renovation costs.

Send email to us

Product Detail

Product Tags

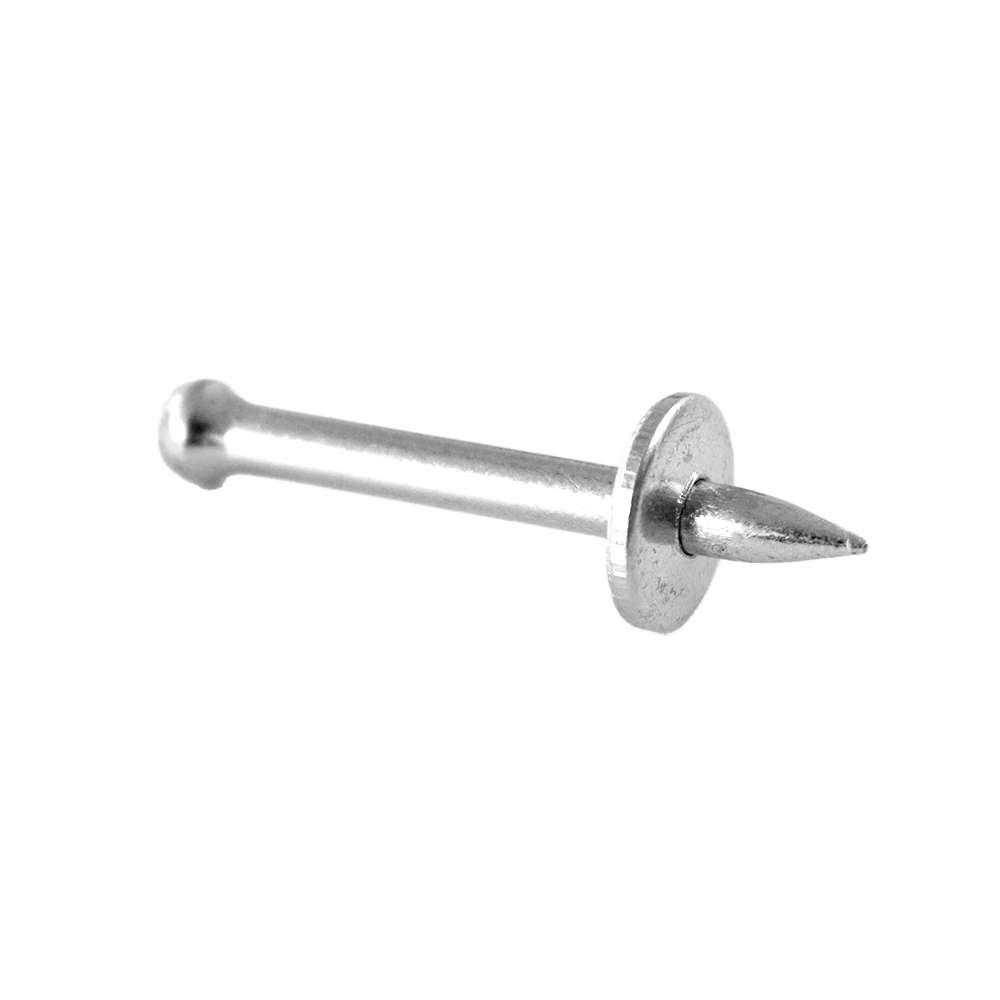

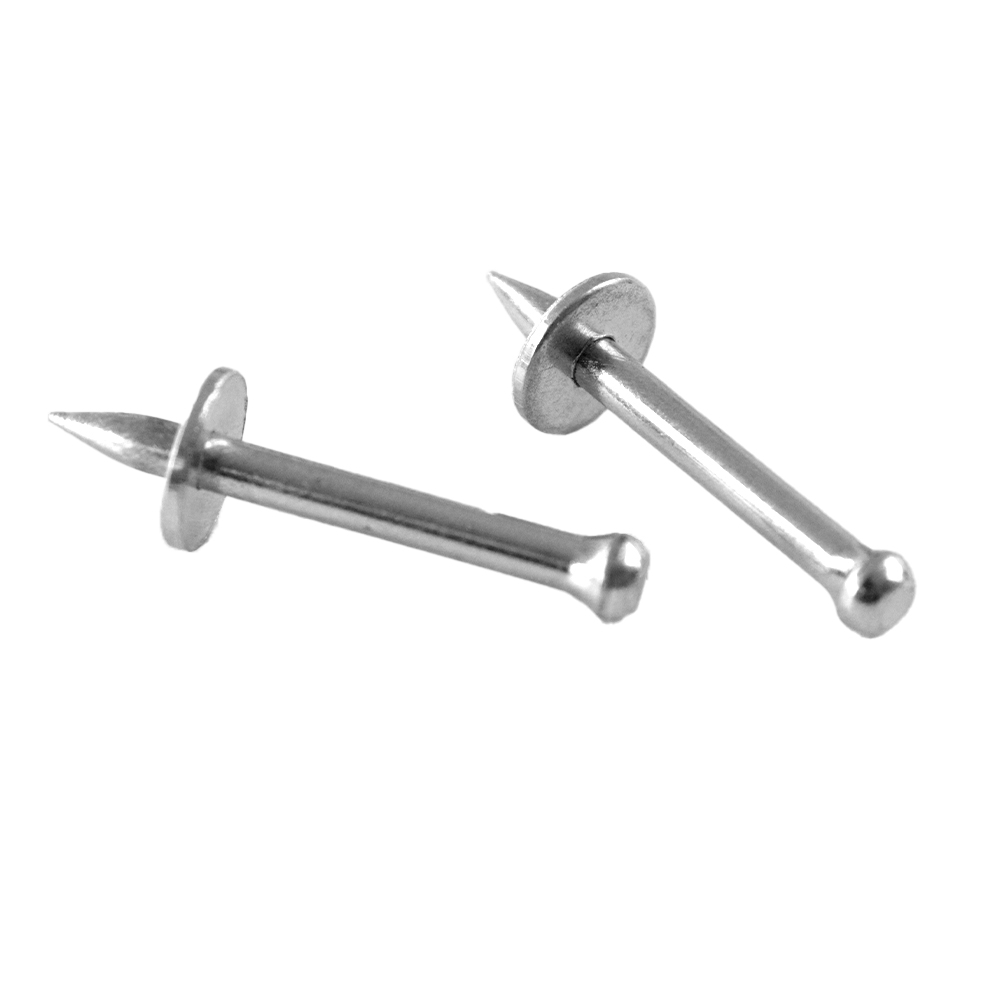

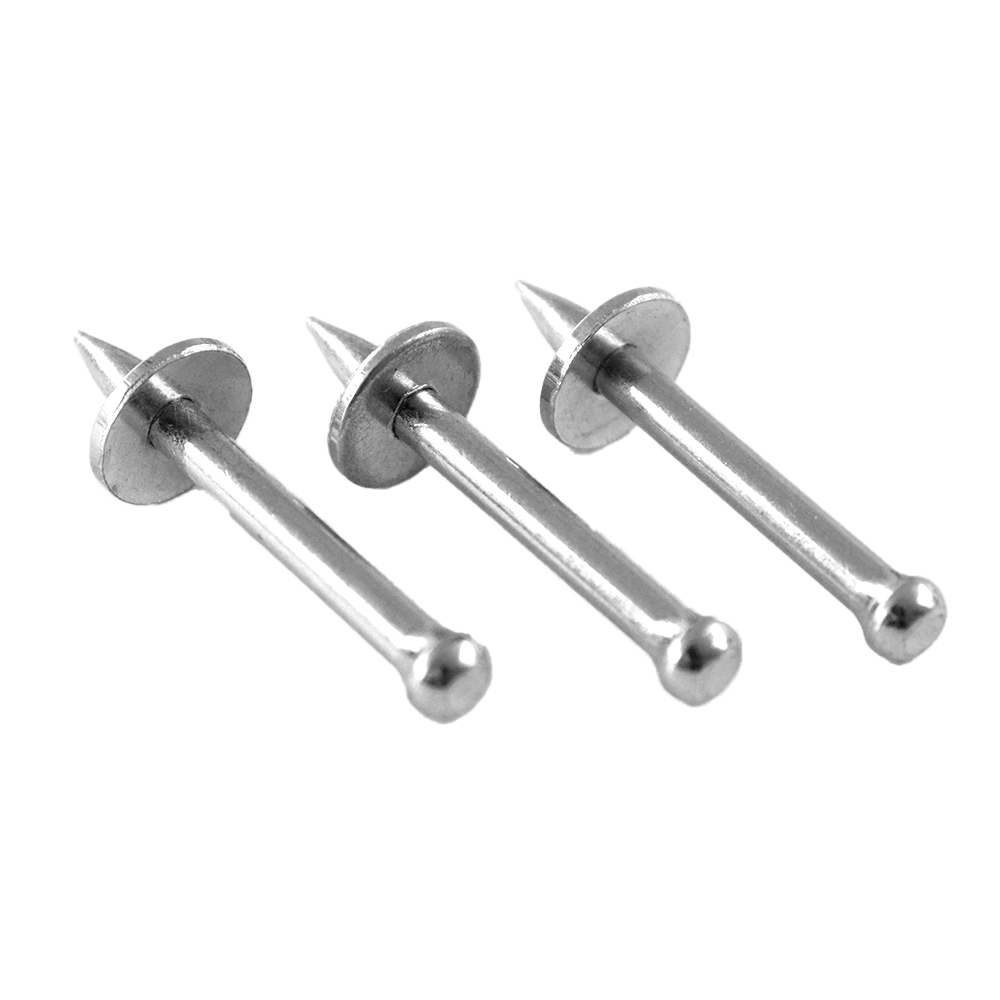

Nail shooting requires the propulsion of powder gases from firing an empty cartridge to drive the nail strongly into the structure. Typically, NK drive pins consist of a nail and a toothed or plastic retaining ring. These components play a vital role in keeping the nail firmly seated in the barrel of the nail gun, preventing any lateral movement during firing. The main goal of the concrete driving nail itself is to effectively penetrate materials such as concrete or steel plates, ensuring a strong connection. NK drive pins are usually made of 60# steel and undergo a heat treatment process to achieve a core hardness of HRC52-57. This optimal hardness allows them to effectively pierce concrete and steel plates.

Product Parameters

Head diameter	5.7mm
Shank diameter	3.7mm
Accessory	with 12mm dia steel washer
Customization	Shank can be knurled, length can be customized

Models

Model	Shank Length
NK27S12	27mm/ 1’’
NK32S12	32mm/ 1-1/4’’
NK37S12	37mm/ 1-1/2’’
NK42S12	42mm/ 1-5/8’’
NK47S12	47mm/ 1-7/8’’
NK52S12	52mm/ 2’’
NK57S12	57mm/ 2-1/4’’
NK62S12	62mm/2-1/2’’
NK72S12	72mm/ 3’’

Application

NK drive pins have a wide range of applications. They are widely used in a variety of situations, such as fastening wooden frames and beams on construction sites, and placing wooden components such as floors, extensions, etc. during home renovations. In addition, concrete drive pins are widely used in the manufacturing industry, including furniture production, body building, wooden case making, and related industries.

Caution

1. It is of utmost importance for operators to hold a strong awareness of safety and possess the requisite professional knowledge to avert any unintended harm to themselves or others while employing a nail shooting apparatus.
2. Frequent examination and cleaning of the nail shooter are vital to ensure its optimal performance and enhance its overall durability.
