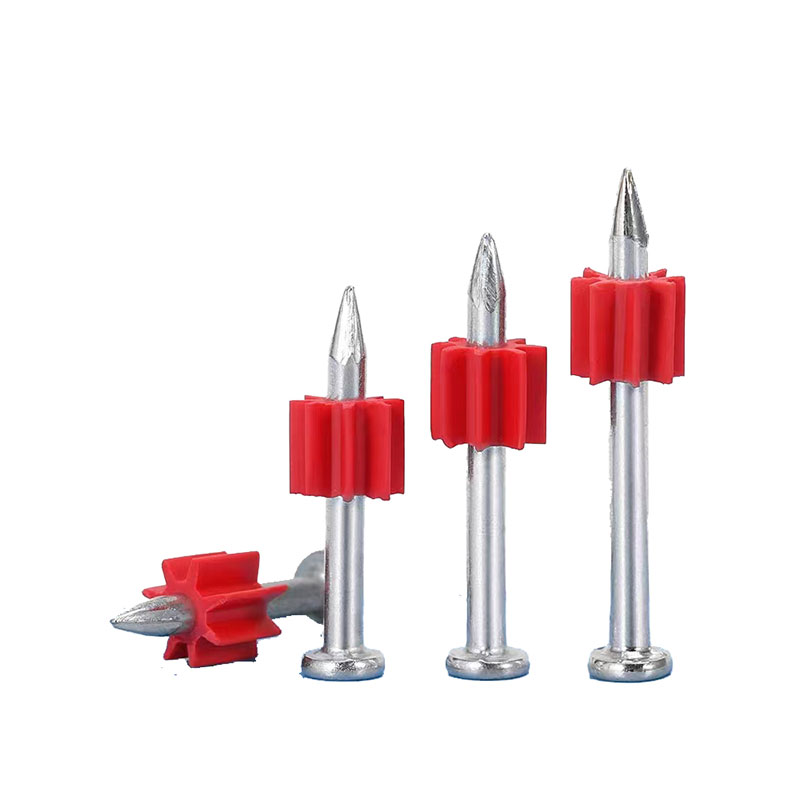

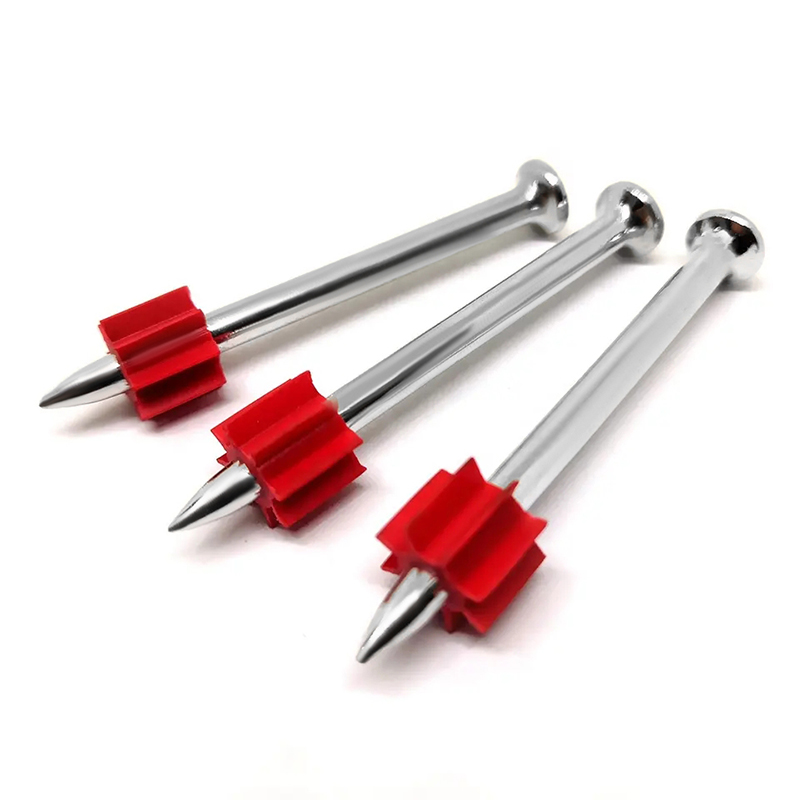

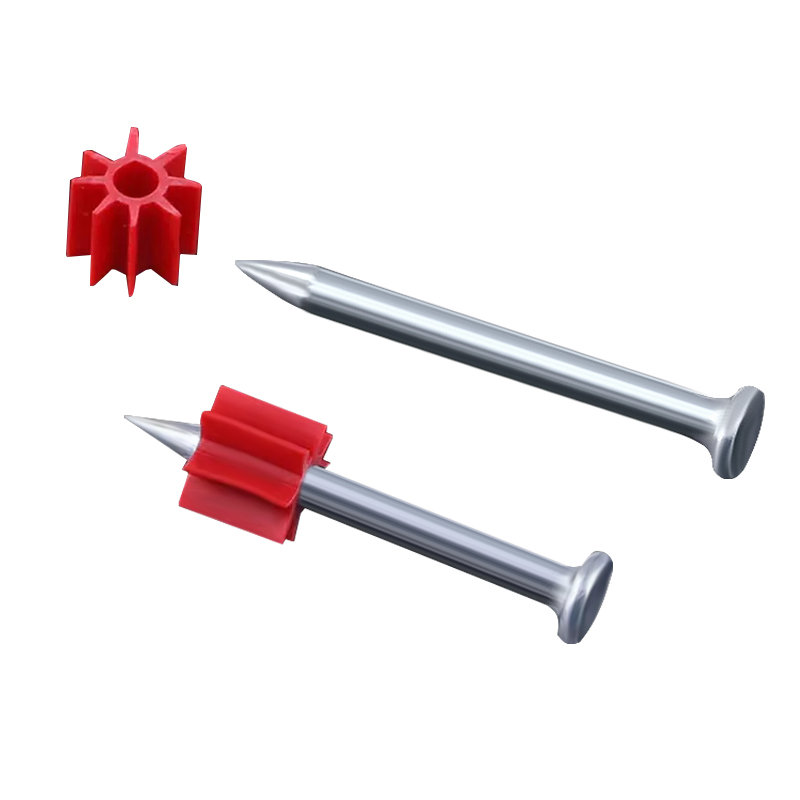

Nail shooting involves driving nails forcefully into buildings using gunpowder gases from firing blank rounds. PD driving nails usually consist of a nail and a toothed or plastic retaining ring. The job of these parts is to securely position the nail in the nail gun barrel, preventing any sideways movement during firing. The main function of the concrete drive nail itself is to penetrate materials such as concrete or steel plates, effectively fastening the connection. The PD drive pin is generally made of 60# steel. After heat treatment, the hardness of the finished core is HRC52-57. This allows them to effectively pierce concrete and steel plates.
Head diameter | 7.6mm |
Shank diameter | 3.7mm |
Accessory | with 10mm dia flute or 12mm dia steel washer |
Customization | Shank can be knurled, length can be customized |
Model | Shank Length |
PD25P10 | 25mm/ 1’’ |
PD32P10 | 32mm/ 1-1/4’’ |
PD38P10 | 38mm/ 1-1/2’’ |
PD44P10 | 44mm/ 1-3/4’’ |
PD51P10 | 51mm/ 2’’ |
PD57P10 | 57mm/ 2-1/4’’ |
PD62P10 | 62mm/ 2-1/2’’ |
PD76P10 | 76mm/ 3’’ |
The range of applications for PD drive pins is very wide. PD drive nails are used in a variety of scenarios, including securing wood framing and beams on construction sites, and installing floors, extensions, and other wooden components in home improvement projects. In addition, concrete drive pins are widely used in the manufacturing industry, such as furniture production, car body construction, and wooden luggage manufacturing and other related fields.
1. It is crucial for operators to possess a high level of safety consciousness and possess the necessary professional expertise to prevent any unintended harm to themselves or others during the use of a nail shooting device.
2. Regularly inspecting and cleansing the nail shooter is essential to guarantee its proper functioning and extend its overall lifespan.
