Nitrocellulose Integrated Powder Actuated Round Fire Fighting Nails

Description:

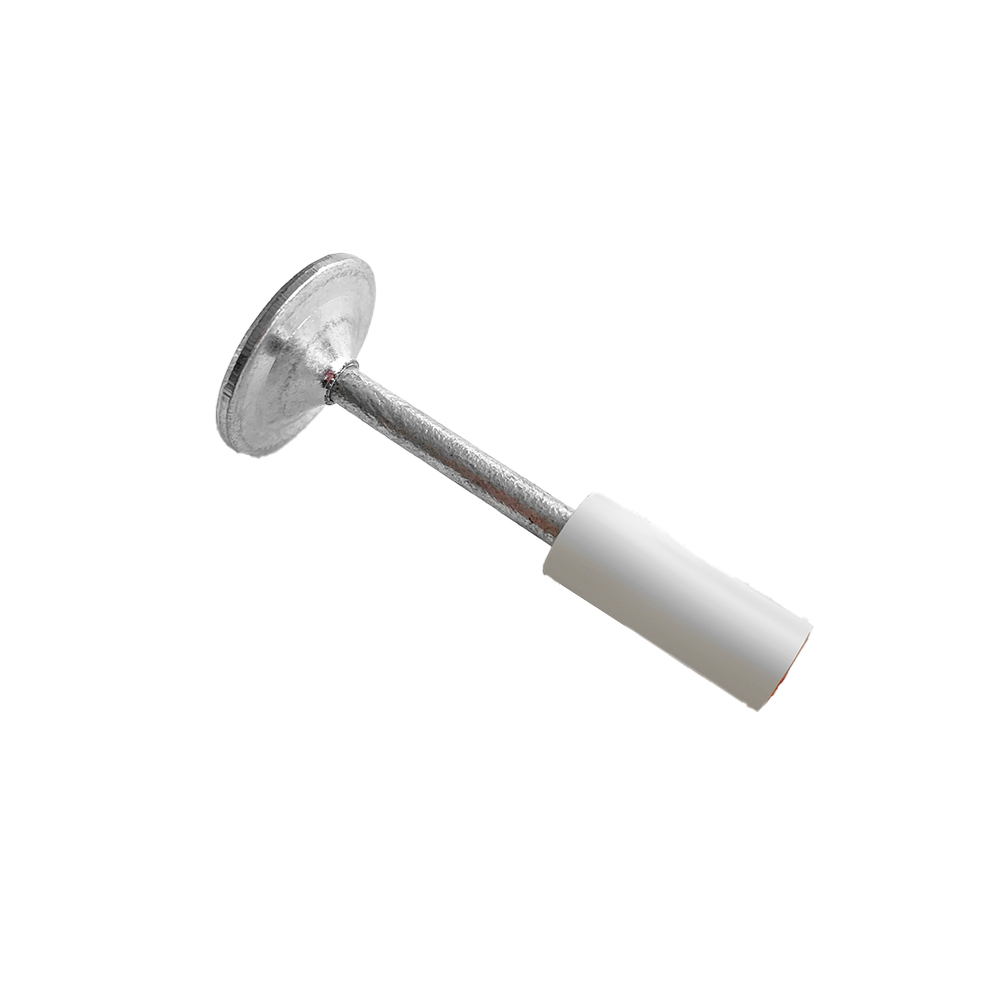

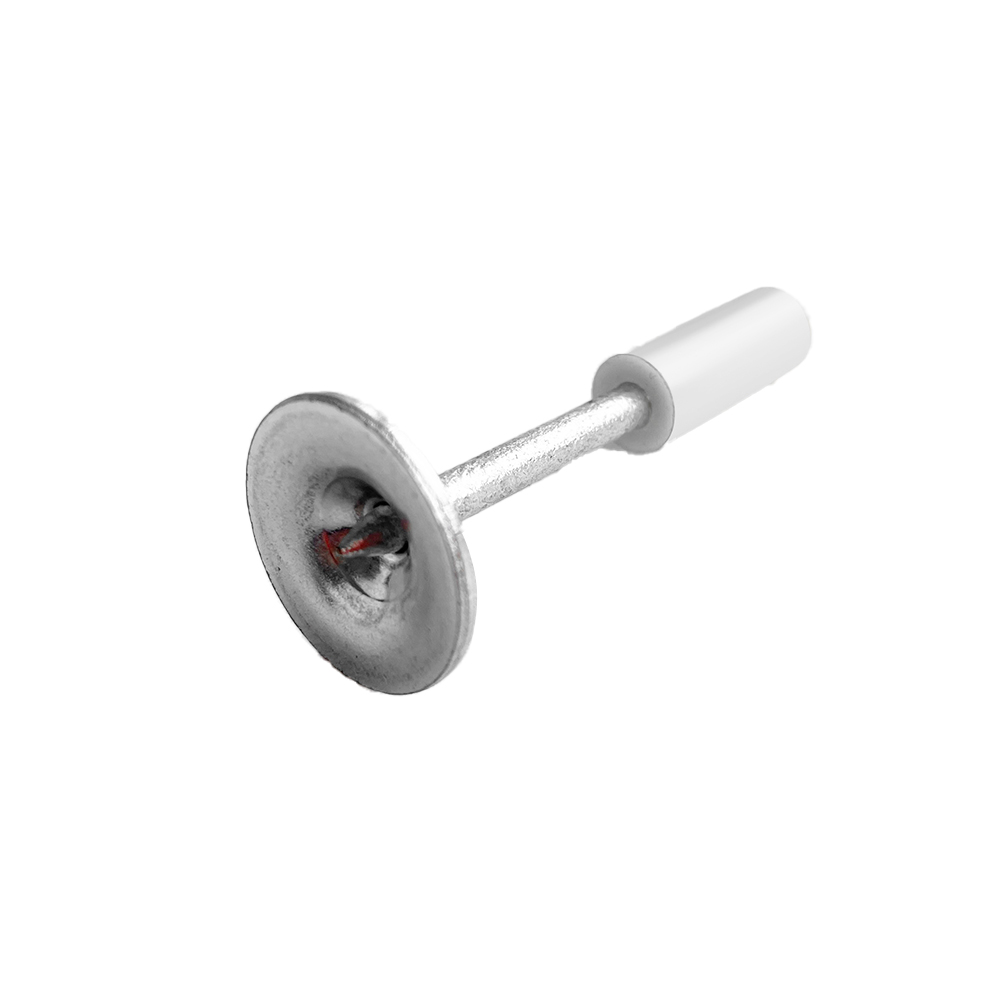

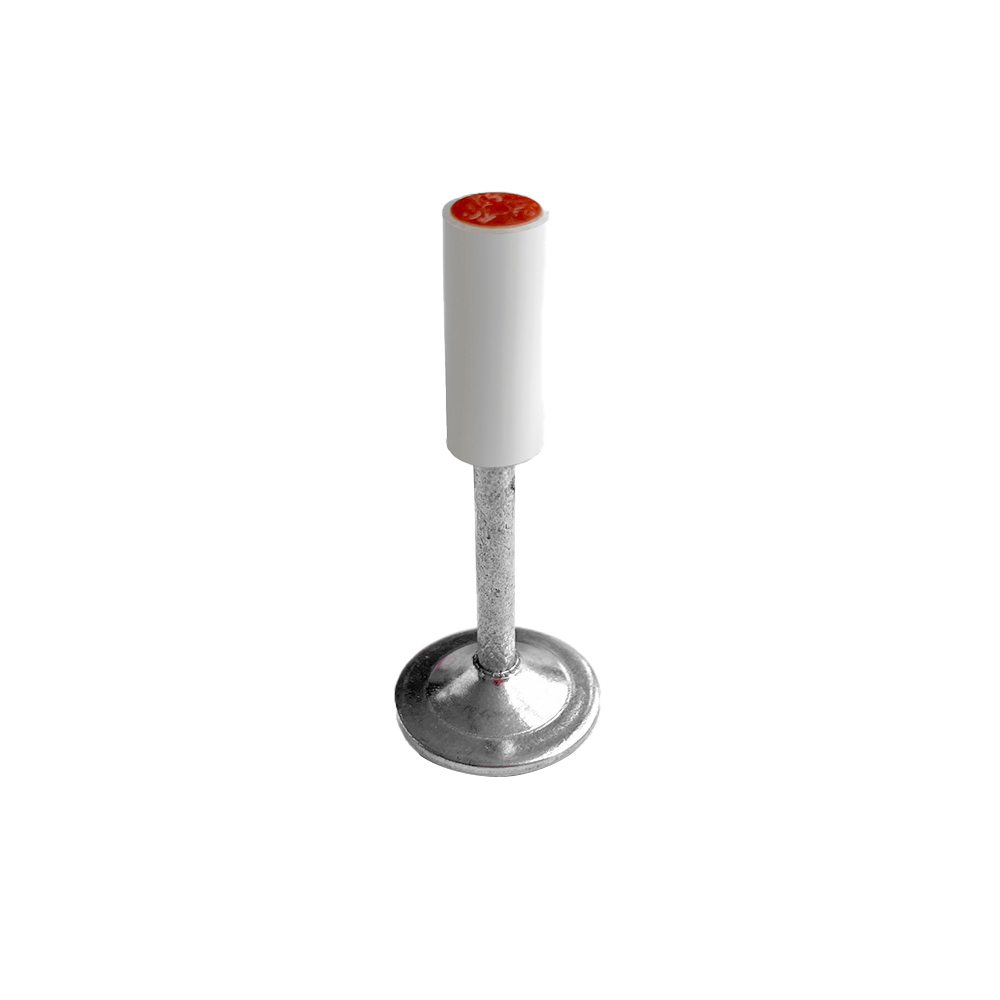

The Nitrocellulose integrated powder actuated round fire fighting nail is a kind of smooth rod nail with round plate. Round fire-fighting integrated nails are usually made of high-temperature refractory galvanized steel which makes them work in high temperature environments for long periods of time without deformation or damage. The fire round nails is suitable for fixing fire-fighting equipment such as fire alarm buttons and sprinklers to ensure that the fire-fighting equipment is firmly and reliably installed in the place for rapid use in emergency situations.

Send email to us

Product Detail

Product Tags

Feature

1. Strong penetration, not easy to fall off.
2. 2mm thickened material, more firm.
3. Full toughness, not easy to break.
4. Surface hot-dip galvanized, not easy to rust.

The fire-fighting integrated nail has a unique design structure consisting of a round plate and attached studs. This structure makes the fire nail very convenient and stable in use. In addition, the special material of high temperature steel also makes the fire fighting pin have the characteristics of corrosion resistance and oxidation resistance, which can be used for a long time in the humid or dusty environment without being easily damaged. Moreover, the fire nail can also prevent accidental movement or shaking of the equipment. Besides, the installation of this fastener is very simple. You only need to place the bottom of the nail on the set hole of the fire equipment, and press firmly, the nail post will be automatically inserted into the hole and fixed.

Product Parameters

1. Round steel plate, 2mm thickness, 21mm diameter, zinc coating is not less than 5μ.
When shooting C30-C40 concrete, drawing capacity within 4200-5800N
2. Different intensity of concrete affects different depth of pipe nails which leads to different data. We use a safe range of data. Usually, the drawing force of single nail suites for load less than 100kg.

Application

The fire clamp is widely used in many occasions, like light steel joist, bridge bracket, electricity, fire fighting, house decoration, doors and windows, monitoring, advertising etc.

Special Design

Double base propellant, more safe than single or so-called multi propellant. The power part of the integrated ceiling nail is made with nitro cotton and nitroglycerin or other explosive plasticizers as its basic energy component. Generally used for large caliber artillery and mortar firing charges.
